The optical smoke detector is eminently suited to early detection of smoldering fires, but it also quickly detects flaming fires that produce smoke. The newly developed, high quality optoelectronic system ensures a homogenous response behavior across a wide smoke spectrum, ranging from light-colored to dark.
The heat detector works according to the differential heat measuring principle. The temperature sensor consists of two precision NTC thermistors. The absolute and the relative change of ambient temperature are measured. The open protective housing means that the ambient temperature has an almost unhindered effect on the sensor and protects it against mechanical damage.
Battery powered Ionization Smoke Detector and Fire Alarm (available in Optical and Ionization type). Supplied with zinc carbon PP3 battery. It gives a 30Day Low battery Alarm, before going out of service.
The multi-sensor detector contains an optical smoke sensor and a thermistor temperature sensor whose outputs are combined to give the alarm / warning. The multi-sensor is, therefore, useful over a wide range of applications and is highly immune to false alarm sources.
♦ Designed to meet approvals world-wide
♦ Five sensitivity bands for different environmental conditions or varying
usages at different times of the day or week
♦ Drift compensation to ensure the reported analogue count is not affected
by extraneous factors such as contamination
♦ Dual LED indication for all round visibility
♦ Flashing LED in standby indicating that the detector is being polled
♦ Automatic addressing with the patented XPERT card
♦ Electronics-free base
♦ Combines inputs from optical and heat sensors
♦ Elegant design and a sleek shape - pure white polycarbonate finish
.
The Ultraviolet / infrared flame detectors are suitable for the detection of smokeless combustible liquid and gas fires, as well as smoke & forming open fire involving carbonaceous materials as contained in wood, plastics, gases, oil products etc.
There are three major categories of hazardous gases :
Combustible gases - posing a risk to personnel and facilities through fire or explosion.
Toxic gases - creating both immediate and long term risk to personnel.
Oxygen displacing gases - depleting workers’ oxygen supply in confined spaces.
The gas and flame monitoring system required for a specific application depends upon the scope of the hazardous gas risk.
Provide accurate, reliable detection of hazardous gases (wide range of industrial gases which poses potential risk). These modules provide an industry standard 4-20 mA / Relay / Modbus / Hart Protocol type output that can interface with single or multichannel controllers and distributed control systems.
Our gas sensor module series provides the latest in loop-powered gas detection loaded with features not normally found in these easy to install sensor modules. This series require minimal Maintenance. Continuous self-diagnostics, scrolling 16-character display and non-intrusive calibration.
Authorized agents for: Sierra Monitor Corporation USA
Open-Path Gas Detector has proven itself on hundreds of installations and offers an economical open-path gas detection solution for those wishing to incorporate open-path technology into their safety system. High immunity to false alarms and rugged design means high availability and reliability.
This detector, due to its special optics design, has a misalignment tolerance of ±1° in all directions and is Low Maintenance.
Typical Applications include :
Offshore Oil & Gas Exploration Oil Rigs and FPSOs
Onshore Oil & Gas Terminals
Storage Farms and Filling Stations
Petrochemical and Chemical Industries
Power Utilities and Turbines areas
Waste Processing and Treatment
Transportation Terminals
Automotive
Painting
Printing
Pharmaceutical Industries and many more….
Specific applications include:
• Fence-line emission monitoring
• Process and storage areas
• Control rooms and auxiliary equipment enclosures
• Vessels and tanks roof monitoring
• Bus garages and terminals (switching from diesel to natural gas)
• Pipelines • LNG-LPG storage, pumping and filling
• Paint-booths and paint production
Authorized agents for: Spectrex Inc USA
Ensures Detection, Alarming / Signaling, and Protection Systems are fully functional by continuous monitoring. It also provides an easy interface among these systems and to other systems. It is self-powered for essential operations.
Control Panels :
Collective Systems, Analog Addressable Systems, Interactive Addressable System.
We offer the most comprehensive marine approved range of conventional, analogue addressable fire detection and extinguishing control panel. This Device is used to control the fire by detecting internal minute heat, flames or smoke, etc, and to rapidly subdue the fire in case it occurs. Also, this equipment plays the role to prevent disaster by sensing the fire, properly responding against the potential suffocation and explosion, etc due to the gas, and controlling it in case of any toxic gas leakage.
Ensures Detection, Alarming / Signaling, and Protection Systems are fully functional by continuous monitoring. It also provides an easy interface among these systems and to other systems. It is self-powered for essential operations.
Conventional Systems, Analog Addressable Systems, Interactive Addressable System. We offer the most comprehensive marine approved range of conventional, analogue addressable fire detection and extinguishing control panel. Compliance to EN54-2 and EN54-4.
Approved by:
Ensures Detection, Alarming / Signaling, and Protection Systems are fully functional by continuous monitoring. It also provides an easy interface among these systems and to other systems. It is self-powered for essential operations.
Control Panels :
Collective Systems, Analog Addressable Systems, Interactive Addressable System.
We offer the most comprehensive marine approved range of conventional, analogue addressable fire detection and extinguishing control panel. This Device is used to control the fire by detecting internal minute heat, flames or smoke, etc, and to rapidly subdue the fire in case it occurs. Also, this equipment plays the role to prevent disaster by sensing the fire, properly responding against the potential suffocation and explosion, etc due to the gas, and controlling it in case of any toxic gas leakage.
Conventional Systems, Analog Addressable Systems, Interactive Addressable System, SCADA, PLC Systems..
We offer the most comprehensive range of conventional, programmable Gas Detection and Control Panel. Compliance to various standards…
Authorized agents for: Sierra Monitor Corporation USA
Ensures Detection, Alarming / Signaling, and Protection Systems are fully functional by continuous monitoring. It also provides an easy interface among these systems and to other systems. It is self-powered for essential operations.
Control Panels :
Collective Systems, Analog Addressable Systems, Interactive Addressable System.
We offer the most comprehensive marine approved range of conventional, analogue addressable fire detection and extinguishing control panel. This Device is used to control the fire by detecting internal minute heat, flames or smoke, etc, and to rapidly subdue the fire in case it occurs. Also, this equipment plays the role to prevent disaster by sensing the fire, properly responding against the potential suffocation and explosion, etc due to the gas, and controlling it in case of any toxic gas leakage.
Conventional Systems, Analog Addressable Systems, Interactive Addressable System, SCADA, PLC Systems..
We offer the most comprehensive range of conventional, programmable fire and Gas Detection and Control Panel. Compliance to various Marine and Offshore standards…
Ensures Detection, Alarming / Signaling, and Protection Systems are fully functional by continuous monitoring. It also provides an easy interface among these systems and to other systems. It is self-powered for essential operations.
Control Panels :
Collective Systems, Analog Addressable Systems, Interactive Addressable System.
We offer the most comprehensive marine approved range of conventional, analogue addressable fire detection and extinguishing control panel. This Device is used to control the fire by detecting internal minute heat, flames or smoke, etc, and to rapidly subdue the fire in case it occurs. Also, this equipment plays the role to prevent disaster by sensing the fire, properly responding against the potential suffocation and explosion, etc due to the gas, and controlling it in case of any toxic gas leakage.
Manual Call Point
The address of each call point is set at the commissioning stage by means of a seven segment DIL switch. The device features plug and play terminal connections and a resettable element.
Marine Manual Call Point has been approved for use in indoor marine applications such as cruise liners. The Marine Manual Call Point has been approved for use in indoor marine applications such as cruise liners. When operated, the manual call point interrupts the polling cycle for a fast response.
Marine Waterproof Manual Call Point has been designed for use outdoors and in places where moisture can occur.
SMOKE DETECTOR TESTER A3 SOLO (250ml)
• Designed to be used only in conjunction with Solo 330 (332) dispenser
• Does not leave residue when used correctly with Solo 330 (332) Dispenser
• Activates detectors quickly
• Dissipates rapidly, enabling the detector to be quickly reset after successful activation
• Dispenser conserves aerosol, controls usage and reduces possibility of misuse
• Not using the recommended aerosol can cause problems and detector damage
Features / Benefits Solo A3 Detector Tester has been proven to contain the properties vital to today’s fire protection market
● No damage to detector plastics / components
● Faster response times to alarm*
● Faster clearing and detector re-set times
● Minimum residue
● Designed for use with Solo 330 Smoke Dispenser
● Non-flammable formulation
● Minimum impact to health, safety and environment
● Improved value for the customer Long term testing, carried out on aerosols , has
optimized the response rate for smoke detectors, as well as the clearing time,
reducing the time required for testing.
*NB. Statement based on those detector plastics and components included within the development project and current at that time
CORDLESS (CAT™) HEAT TESTER
The HEAT TESTER provides a solution for testing heat detectors that is second to none. Its patented design is convenience itself, whilst offering the fastest functional test possible in the safest and most controlled way.
• Safe, with no cables to trip over
• Battery operated tool • Heat is directed horizontally at the sensor
• Rapid activation of detectors
• No flame
• Supplied with 2 Battery Batons.
Features / Benefits
● Heat is directed straight at the detector sensor.
● Sets 95% of all spot / point heat detector types into alarm within seconds.
● Tests detectors up to 9m / 30ft with SOLO universal access poles.
● No cables / cords - power from Battery Baton’ is delivered to unit via the frame.
● Uses same Battery Batons’ and charger as previous model - no need to buy new ones.
● Infra-red beam is broken by detector to activate heat generation.
● Microprocessor control maintains constant heat and airflow with variations in battery voltage.
● Goes into standby after 120 seconds of use for protection.
● Switches off completely after 5 minutes in standby for further protection.
The HEAT TESTER provides a solution for testing heat detectors that is second to none. Its patented design is convenience itself, whilst offering the fastest functional test Supplied with 2 Battery Batons’ and fast charger (operates from 110 / 120, 220 / 240V AC supply or12V DC car battery).
Suitable detector types : Spot / Point type, Rate of Rise, Fixed Temperature and Combination up to 90ºC / 194ºF
Maximum detector size : Any - so long as the sensing element can be targeted by the heat source
Number of test: Typically 50 tests of 30 secs duration per Battery BatonTM
Limitless, if using one Battery Baton™ whilst charging another
Maximum height: Up to 3m / 10ft using SOLO 461 alone. Up to 9m / 30ft using SOLO extension poles
Approvals: CE Mark
UL listed (charger)
Safety Features: Battery over-current cut-out
Element safety cut out after 120 seconds
Operating features: Colour coded LED user feedback
Multi position head
1 hour recharge time for Battery Baton™ (car - 12V DC or 110 / 120 - 220 / 240V AC)
Environment: Operating temperature 5ºC to 45ºC / 40ºF to 115ºF
Storage Temperature -10ºC to 50ºC / 15ºF to 120ºF
Humidity: 0-85% RH non-condensing
Auto power off after 5 mins
Automatic infrared sensing of detector
The Flame detector Test Lamp activates UV, IR and UV/IR Flame detectors that detect at 185-235 nm UV and 4.4 μ IR radiation. For UV only detectors the maximum distance is up to 8 meters (26 ft) in the continue mode and up to 4 m (13 ft) in the pulse mode. The test range for IR and UV/IR detectors is up to 4 meters (13 ft).
Most IR Flame detectors have an extra alarm criterion through analyzing the flicker frequency of a fire. In order to simulate the flame flicker the lamp needs to be pulse operated. For this, the test lamp T-229/4P can be put into the pulse mode by means of a switch on the left side of the test lamp. The lamp then emits pulsed light with a frequency of approx. 2 Hz. After the alarm delay time, the IR or UV/IR flame detector will activate.
Specifications:
Adapter, standard 230 Vac, EU plug
Adapter, optional 100-240 Vac, with selectable plugs for
US, EU, GB and AU
Test range UV flame detectors up to 8 m (26 ft) in continue mode, up to
4 m (13 ft) in pulse mode
Test range IR and UV/IR flame detectors up to 4 m (13 ft)
Battery sealed Lead Acid battery, 12 Vdc / 2.8 Ah
Lamp H3, 12 Vdc / 100 W
Use 10-15 minutes under optimal conditions
and continuous use
Housing ABS (plastic) black
Shipping dimensions (box) 310 x 220 x 210 mm (12 5/8 x 9 x 8
5/8 “ )
Shipping weight 2.1 kg (4.62 lbs)
Protection IP30 / NEMA 1
Temperature range +4 to +40 0C (+39 to +104 0F)
Operation: Before a test is carried out make sure the Flame detector is switched on and the alarm outputs are in override. Please avoid unwanted alarm signals as a result of your test. The Test Lamp will turn on by pressing the trigger and turn off when releasing the trigger. Point at the Flame detector within the test range and on the central axis of the cone of vision of the detector. Press the trigger and wait until the Flame detector is activated. Convince yourself that the switch on the left of the test lamp is in the continuous mode (see figure). For the For IR or UV/IR detectors the switch on the left of the test lamp should be in the pulse mode (see. In this mode the test lamp emits light with a pulse frequency from 2 Hz. Operate the trigger for at least the selected delay time. Most Flame detectors will respond within 30 seconds when the test criterions are met. Do not use the Test Lamp in intermittent operation or in continuous mode for longer than 1 minute. Wait at least 30 seconds after each test before performing the next test.
The Cargo hold Smoke Extraction and Detection System is used to detect smoke presence in the cargo holds of vessels. If there any smoke present, it is detected and alarmed.
The system complies with the requirements of SOLAS chapter II-2, FSS Code Chap. 10 and is safeguarded against explosion according to IEC 79 and EN 50 020.
Air samples are drawn continuously from each cargo hold by means of a fan unit aggregate, which has 2 fan units, and are normally run alternately to have evenly-distributed running hours. Samples of air containing smoke particles detected will result in an alarm being sounded at the main and repeater panels to indicate the exact cargo hold having the smoke presence.
This system is normally connected to the CO2 Fire Extinguishing System.
A typical Smoke Extraction and Detection System consists of the following primary components:
In addition, if needed:
The electrical connection between the smoke detection panel, one or more repeater panels and the relay box is provided by an RS-485 cable.
Optional extension panels are connected to the smoke detection panel via the smoke Detector connection cable.
Features and benefits
• Complies with SOLAS Chapter 11-2 and the FSS Code Chapter10.
• Type approved by all major Classification Societies including ABS, GL,
LR, BV and DnV.
• Compact and modular design saves cost.
• Utilizes existing CO2 pipe-work.
• Automatic air sampling and monitoring of up to 48 cargo holds.
• Repeater panels allow for monitoring from key locations on the vessel.
• Completely automated and self-adjusting.
• Explosion protected to IEC79 and EN 50 020.
• One button control for simple testing and resetting.
The The 40/40I Triple IR (IR3) Flame Detector detects fuel and gas fires at long distances with the highest immunity to false alarms. The 40/40I IR3 can detect a 1ft2 (0.1 m2) gasoline / heptane pan fire at 215 ft (65 m) in less than 5 seconds.
The 40/40I is the most durable and weather resistant flame detector currently on the market. Its new features include a heated window to eliminate condensation and icing, HART capabilities for digital communications, lower power requirement and a compact, lighter design.
Due to increased reliability, the 40/40 Series warranty period has been extended to 5 years and is approved to IEC 61508 Safety Integrity requirements of SIL2 (TUV).
Features:
Triple Spectrum Design - for long distance detection and high false alarm immunity
Sensitivity Selection - to ensure no zone crossover detection
Automatic and Manual Built-In-Test (BIT) - to assure continued reliable operation
Heated Window - for operation in harsh weather conditions (snow, ice, condensation)
Multiple Output Options for maximum flexibility and compatibility
Relays (3) for Alarm, Fault and Auxiliary
0-20mA (stepped)
HART Protocol for maintenance and asset management
RS-485, Modbus Compatible
High Reliability - MTBF - minimum 150,000 hours
5-Year Warranty
User Programmable via HART or RS-485
The 40/40M Multi IR Flame Detector is specifically designed for detection of hydrocarbon and hydrogen flames. It detects hydrocarbon-based fuel and gas fires at long distances with the highest immunity to false alarms. The 40/40M can detect a gasoline pan fire at 215 ft (65 m) or a hydrogen flame at 100 ft (30 m) in less than 5 seconds.
The 40/40M is the most durable and weather resistant range of flame detectors currently on the market. Its new features include a heated window, to eliminate condensation and icing; HART capabilities, for digital communications; lower power requirements, and a compact, lighter design.
Due to increased reliability, the 40/40 Series warranty period has been extended to 5 years and is approved to IEC 61508 Safety Integrity requirements of SIL2 (TUV).
Features
• Multi Spectrum Design - for long distance detection of hydrocarbons and hydrogen
• High False Alarm Immunity
• Sensitivity Selection - to ensure no zone crossover detection
• Automatic and Manual Built-In-Test (BIT) - to assure continued reliable operation
• Heated Window - for operation in harsh weather conditions (snow, ice, condensation)
• Multiple Output Options for maximum flexibility and compatibility
o Relays (3) for Alarm, Fault and Auxiliary
o 0-20mA (stepped)
o HART Protocol for maintenance and asset management
o RS-485, Modbus Compatible
• High Reliability - MTBF - minimum 150,000 hours
• 5-Year Warranty
• User Programmable via HART or RS-485
Spectrex offers two versions of the new 40/40 Series UV/IR Flame Detectors:
Model 40/40L (& LB) provides a combination of UV and IR sensors, where the IR sensor operates at a wavelength of 2.5-3.0 µm, and can detect hydrocarbon-based fuel and gas fires, hydroxyl and hydrogen fires, as well as metal and inorganic fires.
Model 40/40L4 (& L4B) is identical to the 40/40L except that the IR sensor works at a wavelength of 4.5 µm and is only suitable for hydrocarbon-based fires.
The UV/IR flame detector senses radiant energy in the short wave section of both the ultraviolet and infrared portions of the electromagnetic spectrum. The signals from both sensors are analyzed for frequency, intensity and duration. Simultaneous detection of radiant energy in both the UV and IR sensors triggers an alarm signal.
The UV sensor incorporates a special logic circuit that helps prevent false alarms caused by solar radiation.
Features
• UV/IR Dual-Sensor
• High-Speed Response - 150 msec Response to Saturated Signal
• Solar Blind
• Automatic and Manual Built-In-Test (BIT) - to assure continued reliable operation
• Heated Window - for operation in harsh weather conditions (snow, ice, condensation)
• Multiple Output Options for maximum flexibility and compatibility
o Relays (3) for Alarm, Fault and Auxiliary
o 0-20mA (stepped) o HART Protocol for maintenance and asset management
o RS-485, Modbus Compatible
• High Reliability - MTBF - minimum 150,000 hours
• 5-Year Warranty
• User Programmable via HART or RS-485
The new 40/40UV Flame Detector detects hydrocarbon-based fuel and gas fires, invisible hydrogen flames, and fires from hydrides, ammonia, silane and other organics. The 40/40U-UB is the most durable and weather resistant UV flame detector currently on the market. Its new features include a heated window to eliminate condensation and icing; HART capabilities, for digital communications; lower power requirements; and a compact, lighter design.
Due to increased reliability, the 40/40 Series warranty period has been extended to 5 years and is approved to IEC 61508 Safety Integrity requirements of SIL2 (TUV).
The model 40/40UB includes a Built-in-Test (BIT) feature, whereas the 40/40U model does not.
Note: This type of detector should not be exposed to UV radiation sources such as welding, sparks, and electric arcs as it will cause false alarms.
Features
• UV Spectrum Design
• 3-Second Response
• Automatic and Manual Built-In-Test (BIT) - to assure continued reliable operation
• Heated Window - for operation in harsh weather conditions (snow, ice, condensation)
• Multiple Output Options for maximum flexibility and compatibility
o Relays (3) for Alarm, Fault and Auxiliary
o 0-20mA (stepped)
o HART Protocol for maintenance and asset management
o RS-485, Modbus Compatible
• High Reliability - MTBF - minimum 150,000 hours
• 5-Year Warranty
• User Programmable via HART or RS-485
The 40/40R Single IR Flame Detector detects hydrocarbon-based fuel and gas fires using advanced flame analysis tools. The detector provides early warning of flaming fires working at 4.4 μm for maximum sensitivity, and immunity to false alarms from IR sources such as sunlight and IR projectors.
The 40/40R is the most durable and weather resistant single IR flame detectors currently on the market. Its new features include a heated window, to eliminate condensation and icing; HART capabilities, for digital communications; lower power requirements; and a compact, lighter design.
Due to increased reliability, the 40/40 Series warranty period has been extended to 5 years and is approved to IEC 61508 Safety Integrity requirements of SIL2 (TUV).
Features
• Sensitivity Selection
• Automatic and Manual Built-In-Test (BIT) - to assure continued reliable operation
• Heated Window - for operation in harsh weather conditions (snow, ice, condensation)
• Multiple Output Options for maximum flexibility and compatibility
o Relays (3) for Alarm, Fault and Auxiliary
o 0-20mA (stepped)
o HART Protocol for maintenance and asset management
o RS-485, Modbus Compatible
• High Reliability - MTBF - minimum 150,000 hours
• 5-Year Warranty
• User Programmable via HART or RS-485
The 20/20SI Triple IR (IR3) Flame Detector detects fuel and gas fires at long distances with the highest immunity to false alarms. The 20/20SI IR3 can detect a 1ft2 (0.1m2) gasoline pan fire at 200 ft (60 m) in less than 5 seconds.
The 20/20SI flame detector provides long distance detection along with the highest immunity to false alarms. The 20/20SI has sealed electronics to protect the integrity of the unit when opened for installation or maintenance. Optional new features including a heated window to eliminate condensation and icing, and HART capabilities for digital communications.
Features
• Triple Spectrum Design
• Sensitivity Selection
• User Programmable Configuration
• Highly Immune to False Alarms
• Automatic and Manual Built-In Test (BIT)
• Heated Optics (optional)
• Standard 4-wire Connection
• 4-20mA sink/source (3-4 wires) Configuration
• Hart Control (optional)
• RS-485 Modbus Compatible
• MTBF Minimum 100,000 Hours
• 3-Year Warranty
The 20/20CTIx is a self-contained IR3 flame detector that also incorporates a color video camera. Thus the fire can be viewed and verified at a remote location. It detects a fire at up to 100 ft (30 m) in less than 10 seconds. The video signal output is available in either NTSC or PAL format.
Features
• Live Color Video Image
• Triple Spectrum Design
• Sensitivity Selection
• User Programmable Configuration
• Highly Immune to False Alarms
• Automatic and Manual Built-In Test (BIT)
• Standard 4-wire Connection
• 4-20mA sink or source (3-4 wires) configuration
• RS-485 Modbus Compatible
• MTBF Minimum 43,000 Hours
• 3-Year Warranty
Model 20/20L (& LB) Combined UV/IR Flame Detector employs a solar blind UV sensor coupled with a narrow band IR sensor to provide excellent sensitivity combined with enhanced immunity to false alarms (solar blind). The detector has a 20 msec response to a saturated signal.
Detects hydrocarbon based fuel and gas fires, hydrogen, hydroxyl fuels, metal and inorganic fires.
Features
• UV/IR Dual-Sensor
• High-Speed Response
• 20 msec Response to Saturated Signal
• User Programmable Configuration
• Immune to False Alarms (solar blind)
• Automatic and Manual Built-In-Test (BIT) - LB
• Standard 4-wire Connection
• 4-20mA source (3-4 wires) configuration
• MTBF Minimum
• 100,000 Hours
• 3-Year Warranty
The 20/20U (&UB) UV Flame Detector responds to high energy UV radiation emitted by fires and explosions at the point of ignition. It detects hydrocarbon-based fuel and gas fires, invisible hydrogen flames, hydride, ammonia, silane and other inorganic fuel fires.
The UV sensor incorporates a special logic circuit that helps prevent false alarms caused by solar radiation.
Note: This type of detector should not be exposed to UV radiation sources such as welding, sparks and electric arcs as it will cause false alarms.
Features
• UV Spectrum Design
• Typical 3-Second Response
• User Programmable Configuration
• Automatic and Manual Built-In Test (BIT) - UB
• Standard 4-Wire Connection
• 4-20mA Source (3-4 wires) Configuration
• MTBF Minimum 100,000 Hours
• 3-Year Warranty
The 20/20R Single IR Flame Detector detects hydrocarbon-based fuel and gas fires using advanced flame analysis tools. The detector provides early warning of flaming fires working at 4.4 µm for maximum sensitivity and immunity to false alarms from IR sources such as sunlight and IR projectors.
Features
• Sensitivity Selection
• User Programmable Configuration
• Immune to False Alarms
• Automatic and Manual Built-In Test (BIT)
• Standard 4-Wire Connection
• 4-20mA Sink or Source (3-4 wires) Configuration
• RS-485 Interface
• MTBF Minimum 100,000 Hours
• 3-Year Warranty
The 20/20SH is designed to specifically detect invisible hydrogen flames. It utilizes our well proven triple IR design along with special sensors to provide the greatest degree of spectral matching to hydrogen flame emissions whilst being highly immune to false alarms. The 20/20SH can detect a 20 ft (0.5 m) hydrogen flame at 100 ft (30 m) in less than 5 seconds.
Features
• Triple Spectrum Design
• Sensitivity Selection
• User Programmable Configuration
• Highly Immune to False Alarms
• Automatic and Manual Built-In Test (BIT)
• Standard 4-Wire Connection
• 4-20mA Sink or Source (3-4 wires) Configuration
• RS-485 Modbus Compatible
• MTBF Minimum 100,000 Hours
• 3-Year Warranty
The 20/20F UV/IR is designed to meet two important requirements: fast response time (<5 milllisecs) and high reliability (immunity to false alarms). Over 20,000 of these detectors protect armored vehicles and other military applications with proven performance, durability and reliability.
Features
• UV/IR Dual-Sensor
• Less than 5 msec Response Time
• Immune to False Alarms
• Standard 4-Wire Connection
• MTBF Minimum 100,000 Hours
• 3-Year Warranty
• Designed and Built to MIL Spec
The 20/20FI is a high-speed version of our triple IR flame detector design with the highest possible immunity to false alarms. It is specifically designed for applications such as paint or solvent manufacturing where high speed response time (0.2-1.0 secs) at distances from 6.6 - 30 ft (2-10 m) is required.
Features
• Triple Spectrum Design
• Fast Response Time
• Sensitivity Selection
• User Programmable Configuration
• Highly Immune to False Alarms
• Automatic and Manual Built-In Test (BIT)
• Standard 4-Wire Connection
• 4-20mA Sink or Source (3-4 wires) Configuration
• RS-485 Interface
• MTBF Minimum 100,000 Hours
• 3-Year Warranty
The 20/20MI is an economical and compact Triple IR (IR3) Flame Detector in a rugged stainless steel housing. It is available in either general purpose non-Ex approved or intrinsically safe approved (EExia) format. It retains all the benefits of IR3 technology - long distance detection (up to 130ft/40m) along with highest immunity to false alarms.
Features
• Triple Spectrum Design
• 80% Less Power Consumption
• Highly Immune to False Alarms
• Large Field of View (100° horizontal/vertical)
• Sensitivity Selection
• User-Programmable Functions Configurable via software from a PC or handheld device
• Automatic and Manual Built-In-Test (BIT)
• Standard 4-Wire Connection
• 4-20mA Sink or Source (3-4 wires) Configuration
• RS-485 Modbus Compatible
• MTBF Minimum 100,000 Hours
• 3-Year Warranty
The low cost 20/20ML UV/IR Flame Detector has a compact, lightweight but rugged design for general purpose (non-Ex approved) areas. It detects hydrocarbon fire at distances up to 50 ft (15 m).
The 20/20ML provides a combination of UV and IR sensors and can detect hydrocarbon-based fuel and gas fires, hydroxyl and hydrogen fires, as well as metal and inorganic fires. The UV sensor incorporates a special logic circuit that helps prevent false alarms caused by solar radiation. Simultaneous detection of radiant energy in both the UV and IR sensors triggers an alarm signal.
Features
• UV/IR Dual-Sensor
• High-Speed Response
• 50 msec Response to Saturated Signal
• Large Field of View (100° horizontal/vertical)
• User Programmable Functions Configurable via software from a PC or handheld device
• Immune to False Alarms (solar blind)
• Automatic and Manual Built-In-Test (BIT)
• Standard 4-wire Connection
• 4-20mA source (3-4 wires) configuration
• RS-485 Modbus Compatible
• MTBF Minimum 100,000 Hours
• 3-Year Warranty
The Spectrex Long-Range Flame Simulator allows testing of optical flame detectors in areas where real fires cannot be ignited. Testing is also mandatory in some industries to "proof test" flame detector operation and to satisfy statutory requirements.
Testing optical flame detectors after they have been installed can be a difficult task with the associated cost and time, often requiring special ladders/scaffolding to reach the detectors, which are generally located near the ceiling or in a high position.
The Long-Range Fire Simulators are handheld devices specifically designed for use with the various SharpEye Optical Flame Detectors to test their response to fire from a distance up to 30 ft (9 m), without the need of actually igniting a fire in front of the detector or the need to reach the detector itself (no physical contact).
Please see the "Simulator" datasheet for more information
PN 20/20-310 for IR3 flame detector
PN 20/20- 311 for UV and UV-IR flame detector
PN 20/20- 312 for Single IR flame detector
PN 20/20- 313 for Hydrogen flame detector
Features
• Specifically designed for use with various SharpEye Optical Flame Detectors.
• Beam collimator attachment for extended range applications (optional).
• NiCd batteries use as a rechargeable power source for max of 50 uses.
The Open-Area Beacon has been developed for use in situations where there is a risk that sounders will not be heard. It is weatherproof and can be used outside.
Marine Multi-Tone Open-Area Sounder (Weatherproof)
The Marine Multi-Tone Open-Area Sounder is designed for use in open areas. The sounder comprises a back-box and sounder unit supplied together.
The Open-Area Sounder has been designed for use in open area.
The Loop-Powered Beacon is a local-area beacon designed for indoor use. The beacon has been developed as a supplement to sounders for use in situations where there is a risk that sounders will not be heard.
Beacon Enclosure
The Beacon Enclosure is weatherproof and allows Apollo's loop-powered beacon to be used in high moisture environments such as swimming pools and food processing areas where wash-down occurs.
In order to ensure the safe and accurate operation of Fixed Gas Detectors, they need to be periodically calibrated against reference test gases. The recommended calibration period for gas detectors is six months although the frequency may need to be increased where continual exposure to the target gases is experienced.
Between calibrations it is also recommended that the response of the detector is checked using an appropriate test gas cylinder. These cylinders are available in 'large aerosol' form and may be supplied individually or as part of a Field Calibration Kit.
SOLO 810 KI T FG-07-10003 A starter pack for testing smoke detectors fitted at normal ceiling height. Contains: 1 SOLO 330 Smoke Aerosol Dispenser 1 SOLO 101 1.13m fiber glass Extension Pole 3 SOLO A3 Detector Tester SOLO™ 810 KIT
SOLO 811 KI T A universal set for testing and removing smoke detectors fitted up to 6m high SOLO™ 811 KIT 1 SOLO 200 Universal Detector Removal Tool 1 SOLO 330 Smoke Aerosol Dispenser 1 SOLO 610 Protective Carrying Bag Contains: 1 SOLO 100 Telescopic Pole FG-08-10004.
SOLO 814 KI T FG-08-10005 A universal set for testing and removing smoke detectors and heat detectors fitted up to 6m high. Contents as SOLO 811 but includes a SOLO 424 (220/240V) heat detector tester.
SOLO 822 KI T A universal set for testing and removing smoke detectors and heat detectors fitted up to 6m high. Contents as SOLO 811 but includes a SOLO 461 CAT™ Cordless Heat Detector Tester.
SOLO 823 KI T
FG-08-10007 A universal set for testing and removing smoke detectors and heat detectors fitted up to 9m high.
SOLO™ 823 KIT
Contents as SOLO 811 and includes a SOLO 461 CAT™ Cordless Heat Detector Tester and 3 SOLO 101 extension poles.
A universal set for testing and removing smoke detectors Contains:
SOLO 811 KIT
Suitable detector types : Spot / Point type, Rate of Rise, Fixed Temperature and Combination up to 90ºC / 194ºF
Maximum detector size : Any - so long as the sensing element can be targeted by the heat source
Number of test: Typically 50 tests of 30 secs duration per Battery BatonTM
Limitless, if using one Battery Baton™ whilst charging another
Maximum height: Up to 3m / 10ft using SOLO 461 alone. Up to 9m / 30ft using SOLO extension poles
Approvals: CE Mark
UL listed (charger)
Safety Features: Battery over-current cut-out
Element safety cut out after 120 seconds
Operating features: Colour coded LED user feedback
Multi position head
1 hour recharge time for Battery Baton™ (car - 12V DC or 110 / 120 - 220 / 240V AC)
Environment: Operating temperature 5ºC to 45ºC / 40ºF to 115ºF
Storage Temperature -10ºC to 50ºC / 15ºF to 120ºF
Humidity: 0-85% RH non-condensing
SOLO 461 (CAT Cordless)
Auto power off after 5 mins
Automatic infrared sensing of detector
ILR Flame Detectors
Manual Alarm Call Points

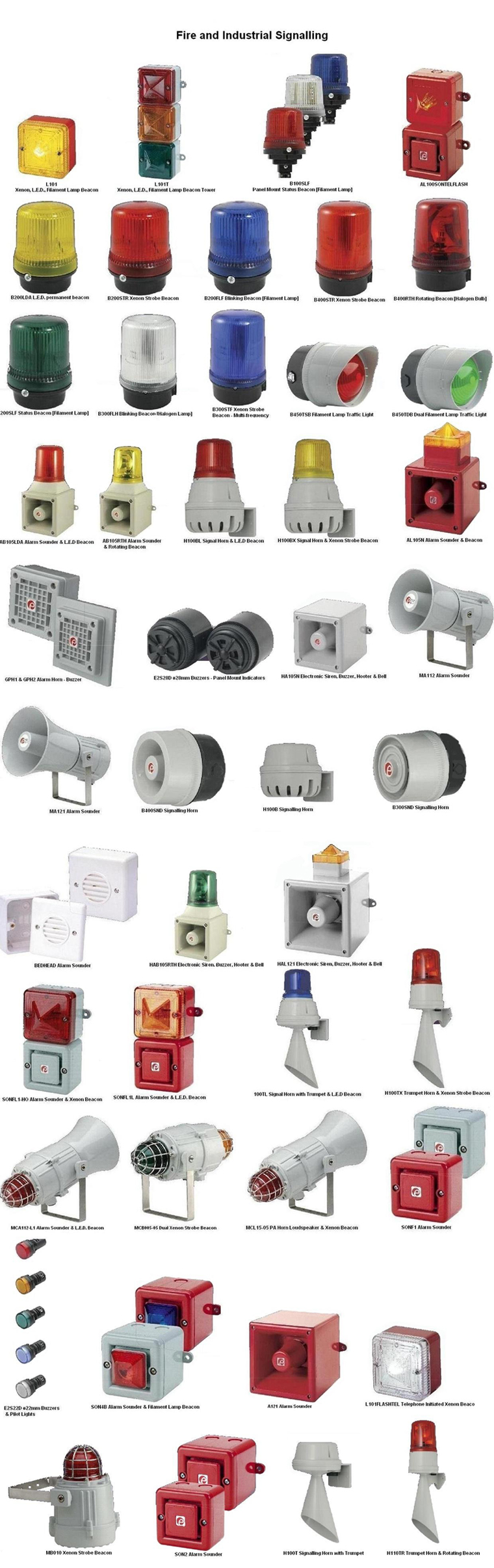

Industrial And Fire Warning Devices

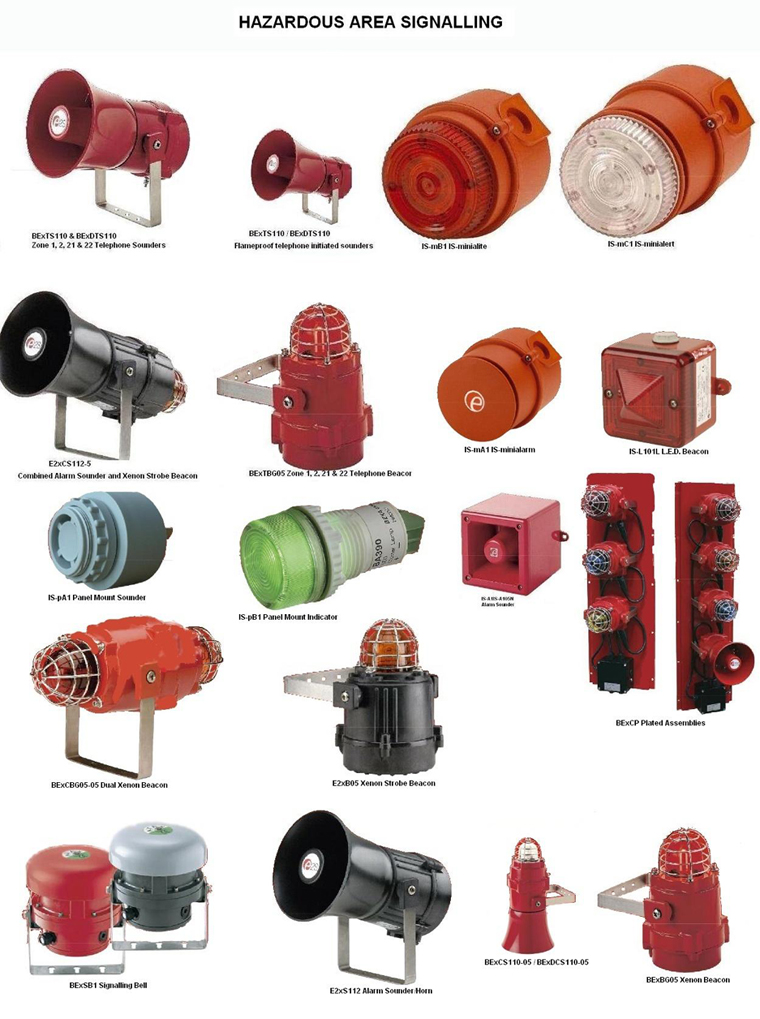

Hazardous Area Warning Devices

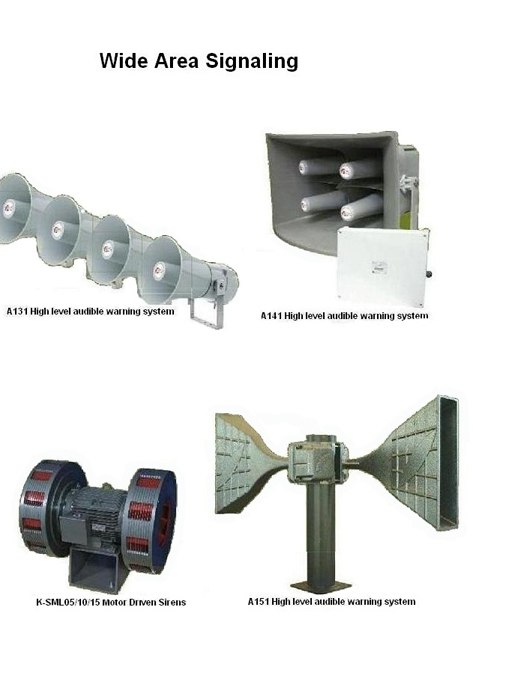

Wide Area Signalling Devices
Open Area Warning Devices
Detector Test Kits
